Visualize your grid in every dimension

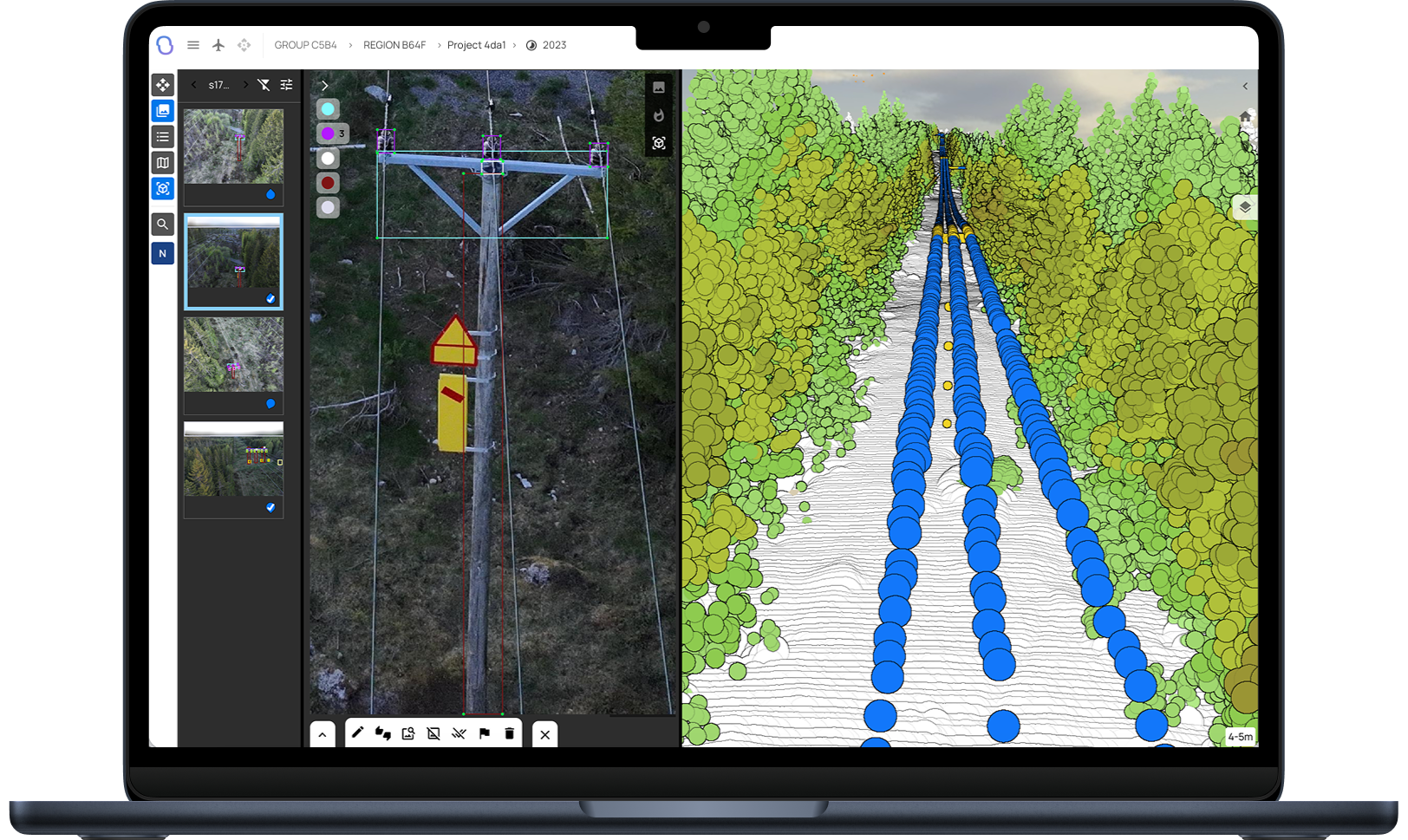

Arkion’s visualization platform transforms complex inspection data into clear, actionable insights. Designed for power grids, it brings 2D, thermal, and LiDAR data together on an intuitive map interface—making it easy for any team to explore, filter, and act on the condition of every asset.
The impact from better visualization tools
From inspection to insight in seconds with smart search and filtering.

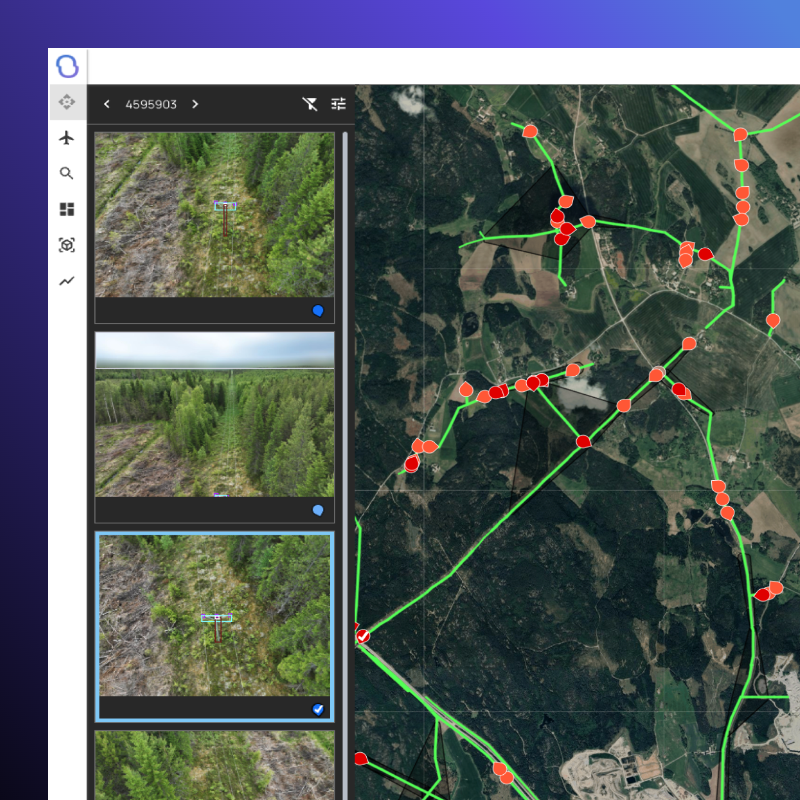

Understand grid condition with map-based visualization.
Share visual findings, track actions, and align teams around clear, verified data.
Find what matters instantly

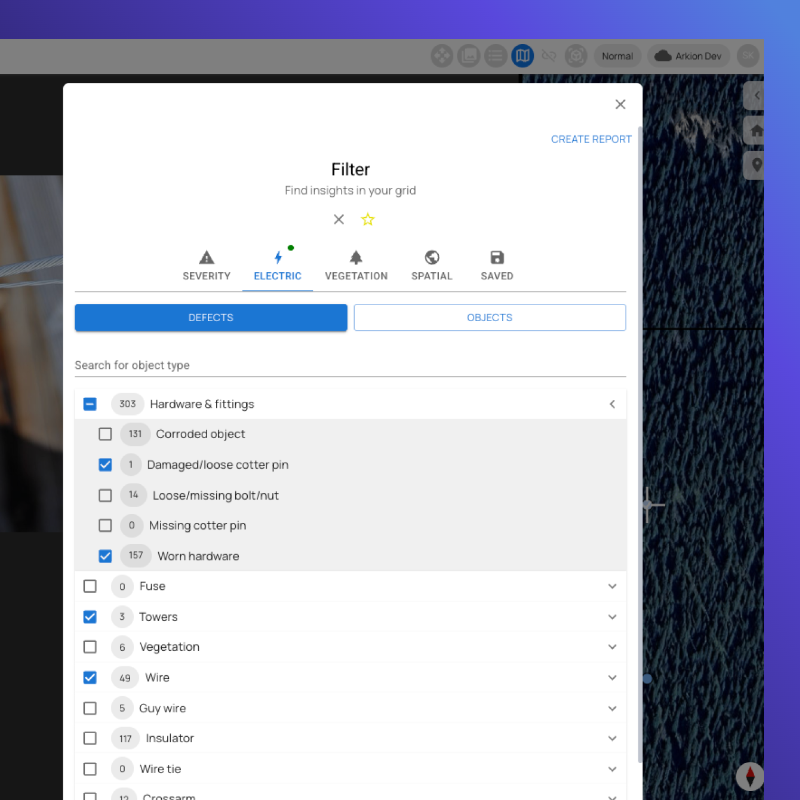

Filter by component, defect severity, asset type, or region to cut through millions of data points in seconds. Whether you’re reviewing a single pole or an entire network, advanced search tools make insights accessible across your organization.
.webp)
Purpose-built for power grids

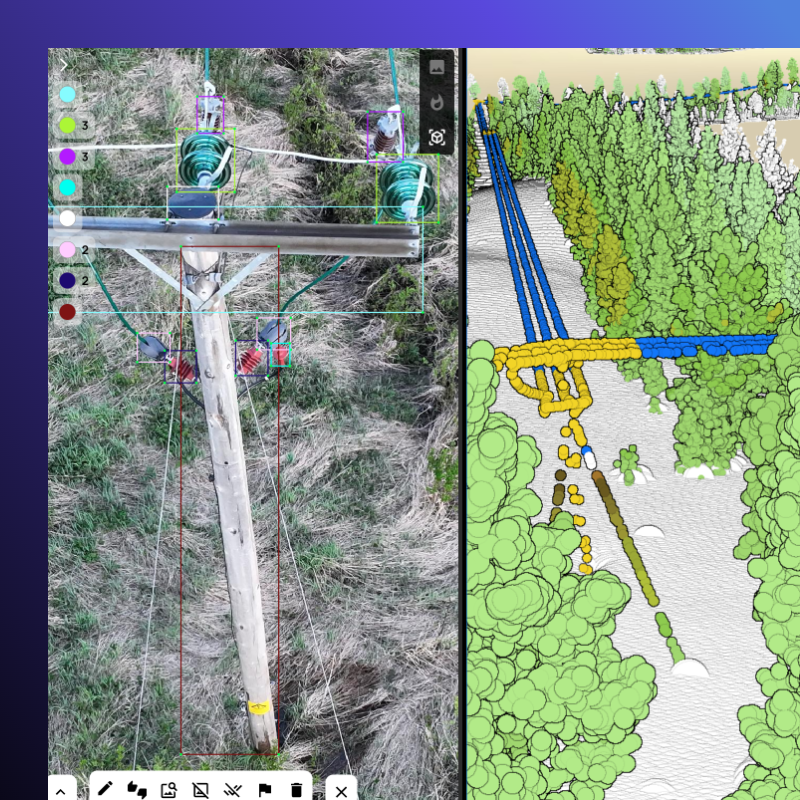

The interface is designed specifically for grid visualization—linking every image, LiDAR point, and measurement to real assets. Switch between layers, zoom into structures, or inspect components in 3D to fully understand your network’s health.
From visual insight to actionable report

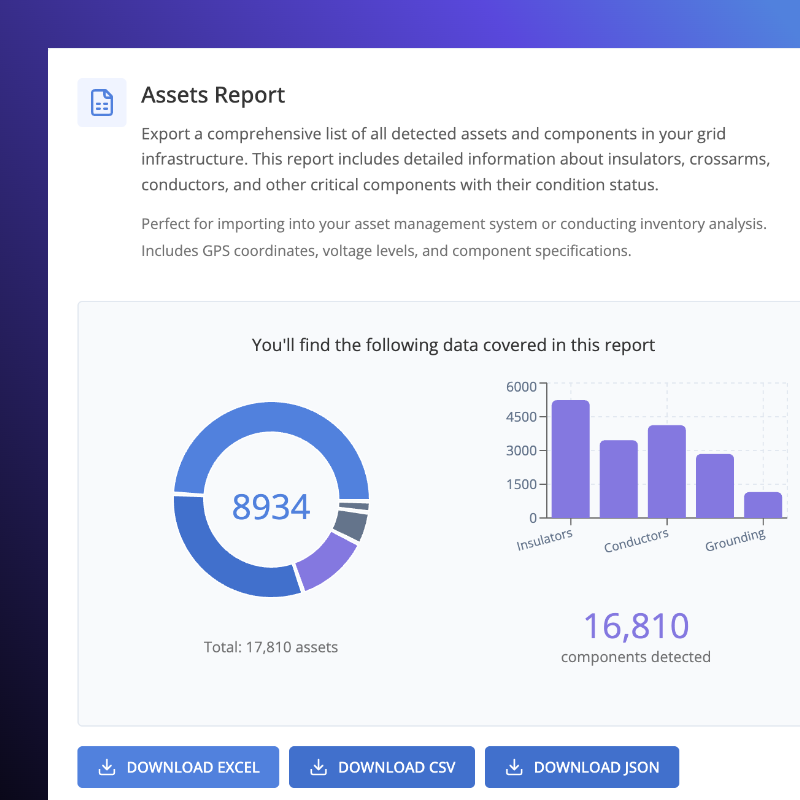

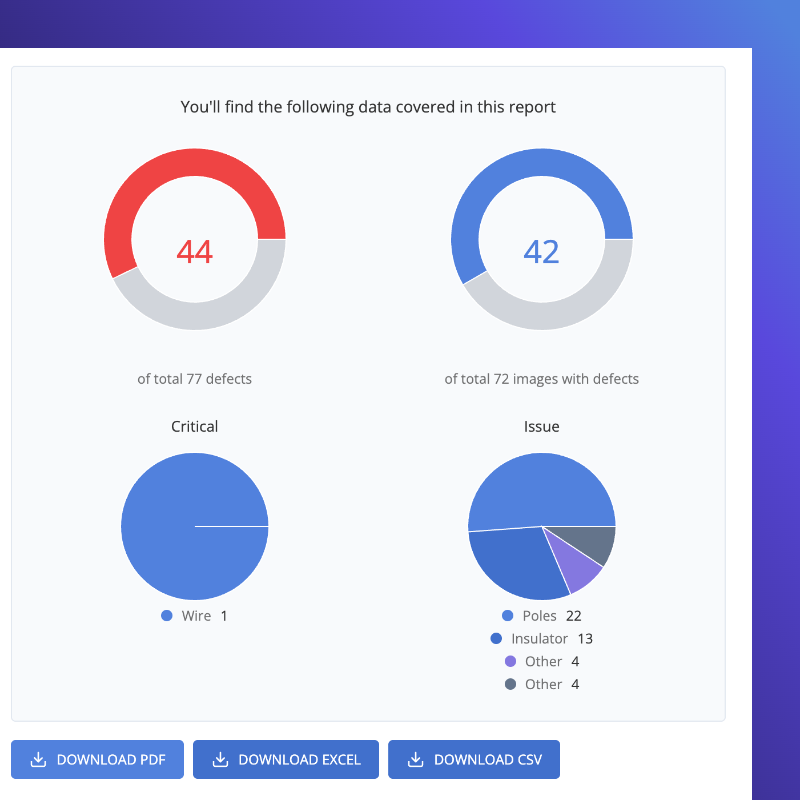

Generate reports, dashboards, and data exports directly from the map interface. Track network-wide condition trends, vegetation risks, or defect types—and share them with stakeholders at any level of the organization.
Works with your data
Related features
Visualization is best used when combined with Arkion's advanced AI features to turn images into insights.

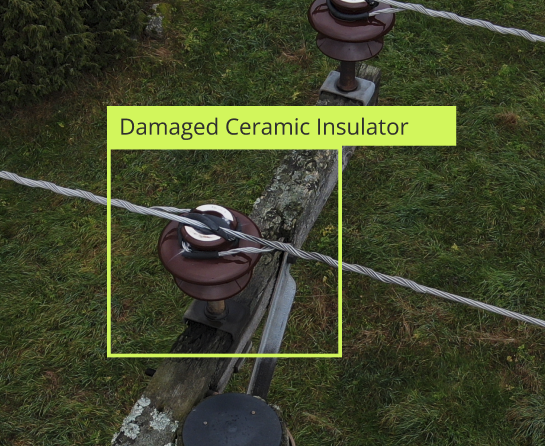

AI-powered models detect and classify defects automatically across millions of images, identifying cracks, corrosion, and other component issues long before they cause outages.
Every pole, crossarm, and insulator is automatically identified and labeled, creating a structured, verified record of your entire network.
Advanced 3D analytics measure ground clearance, vegetation distance, and structural geometry—supporting compliance and digital twin creation.
FAQ
Don’t hesitate to contact us if you have any questions
Arkion integrates with most leading Asset Management Systems (AMS), GIS, and work-order tools through a secure two-way API. Common integrations include SAP, Trimble, Maximo, and ArcGIS, among others, enabling seamless data flow between systems.
Getting started involves three simple steps: 1) Data Review – Arkion reviews your existing data for quality and compatibility. 2) Pilot Analysis – A limited-scope pilot demonstrates analysis accuracy and workflow integration. 3) Scale-Up – The solution is rolled out across your grid, with dashboards, reports, and integrations configured to your needs.
Arkion is a secure, browser-based platform. Users can log in to review data, filter insights, and plan actions through an intuitive map interface and dashboards. Results can also be exported as reports or pushed directly into enterprise systems via API.
Not usually. Arkion maintains a library of more than 100 trained models that cover common components and defect types. These can be immediately applied during onboarding. Custom development is reserved for unique equipment types or conditions outside the existing dataset.
Arkion’s platform supports all major inspection and analytics use cases, including maintenance, vegetation management, asset inventory, and post-storm assessments — across low-, medium-, and high-voltage networks. Additional models can be developed for specialized needs.
Arkion typically requires geotagged imagery or LiDAR data, along with structure metadata such as pole IDs or coordinates. Optional inputs like thermal imagery or flight logs can enhance results but are not mandatory.
Arkion supports industry-standard formats including JPEG, TIFF, PNG, and GeoTIFF for images, LAS/LAZ for LiDAR, and CSV or shapefile-based metadata. The platform can also connect directly to cloud storage or API-based data feeds for seamless ingestion.
Model retraining or fine-tuning is included in service agreements when needed to maintain performance. For new object types or regions requiring dedicated dataset development, Arkion may propose a scoped AI model development project.
Yes. Arkion’s in-house AI and electrical-engineering experts regularly develop custom models for utilities with unique assets or inspection needs. These models are integrated into the platform and benefit from Arkion’s full QA and visualization ecosystem.
